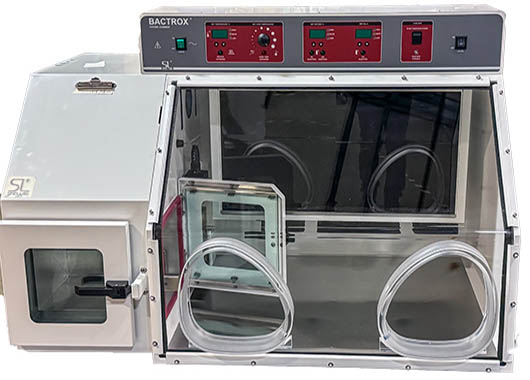

Bactrox HYPOXIA/MICROAEROPHILIC CHAMBER, 1 - 20% O2 CONTROL, 115V

Get a Quotation

Bactrox offers precise oxygen control ranging from 1% to 20% for microaerophilic bacteriology and hypoxic tissue or cell culture applications. It has the additional capability of controlling carbon dioxide from 1% to 20%. The Bactrox permits oxygen and carbon dioxide control in increments of 1/10th of a percent.

Unlike a tri-gas incubator, the Bactrox allows for microaerophilic bacteriology and hypoxic tissue or cell culture work to be performed in desired oxygen conditions throughout all culturing processes. The Bactrox is a complete workstation so bacteria and cells are more likely to grow faster and show less damage.

The benefits of using a BACTROX Hypoxia Chamber Include:

Ultra Bright LED Examination Lights
Stainless Steel Construction for Long Term Durability
Independent Gas Controls
RS232 Data Collection
Condensation Control – High Humidity With Little or No Condensate

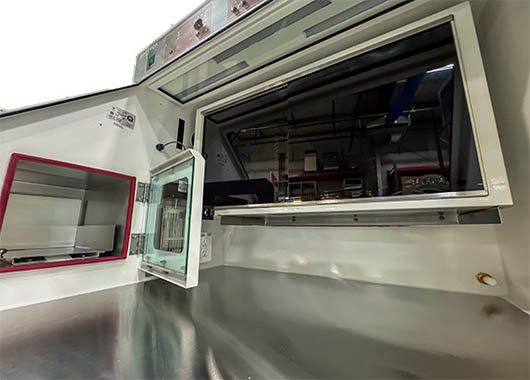

Immediate Access to Chamber Via Sleeves
Standard Microscope Adapter Accessories
PC Calibration of Oxygen Sensor
24 Month Limited Warranty
Advanced Atmospheric PID Controller:
Highly Accurate Zirconium Dioxide Oxygen Sensor, CO2 Control & Logging, O2 Control & Logging, Uses Ambient Air Pump Instead of O2 Tank, Uses Standard Nitrogen & CO2 Tanks

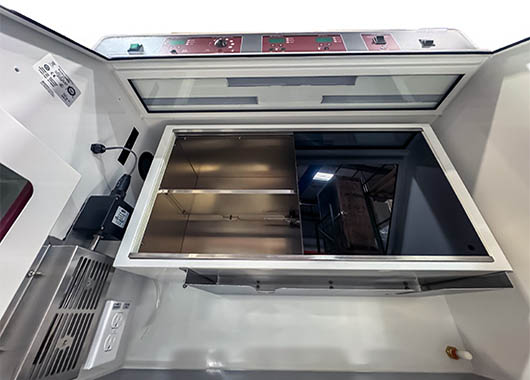

Independent Incubator (5°C above ambient to 70°C)
Temperature Control & Logging
300 Plate Capacity

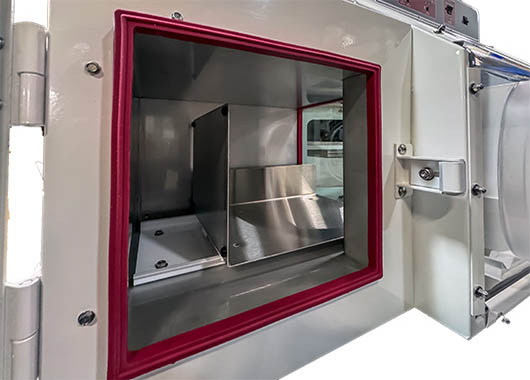

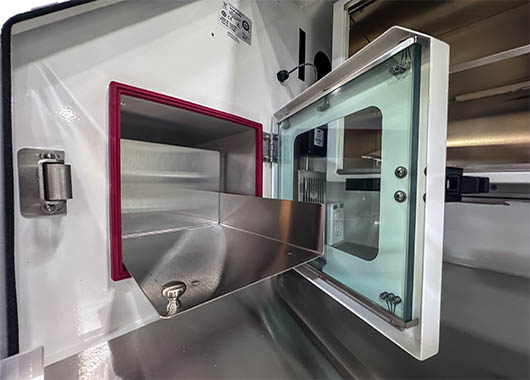

Ultra-Fast Extra Large Pass Box
Vacuum-less Pass Box, Complete Cycle Time of 60 Seconds, 90 Plate Capacity
Vacuum-less Sleeve Entry:
Immediate Entry Into Chamber, Foot Pedal Vacuum System Eliminated

Ask us about our Extended Warranties*!

*US Domestic Only

All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.

Specs Brochures/Manuals

Model

Bactrox

Part ID

Bactrox

Exterior Dimensions (W × D × H)

49.0 × 32.0 × 33.5
(1245 mm × 813 mm × 851 mm)

Interior Dimensions (W × D × H)

33.0 × 28.9 × 25.0
(838.0 mm × 734.0 mm × 635.0 mm)

Volume

12.5 cu.ft. (354.0 L)

Airlock Capacity

78 Plates

Airlock Dimensions (W × D × DIAG)

9.0 × 10.7 × 9.0
(229 mm × 272 mm × 229 mm)

Incubator Dimensions (W × D × H)

27.5 × 8.5 × 13.5
(699 mm × 216 mm × 343 mm)

Shelf Dimensions (W × D)

27.3 × 7.4 (694.0 mm × 188.0 mm)

Unit Weight

304.0 lbs (138.0 kg)

Interior Metal

300 SST

Exterior Metal

300 SST & CR

Operating Temperature Range

Amb +5C - 70C

Temperature Uniformity - Midrange

1.0 °C

Temperature Stability - Midrange

0.2 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 3.5 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

Bactrox 110/120V Manual

Bactrox 220/240V Manual

Bactrox Brochure
