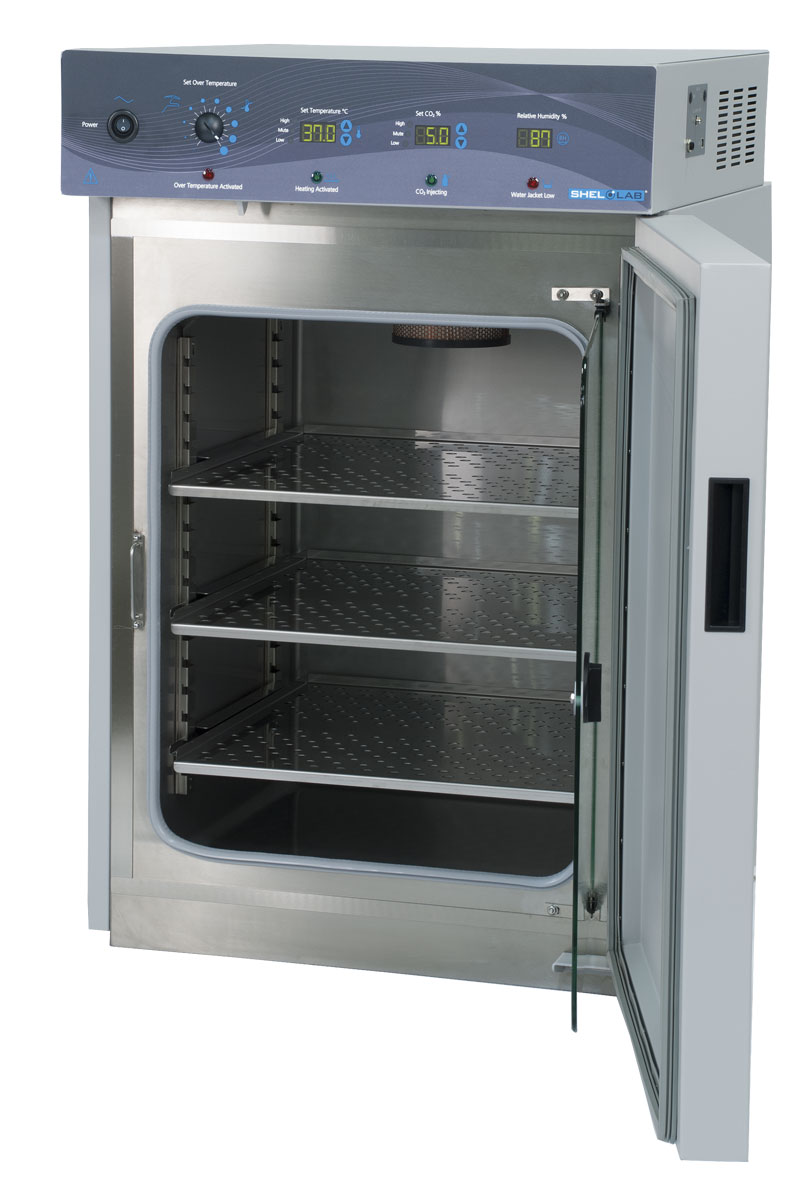

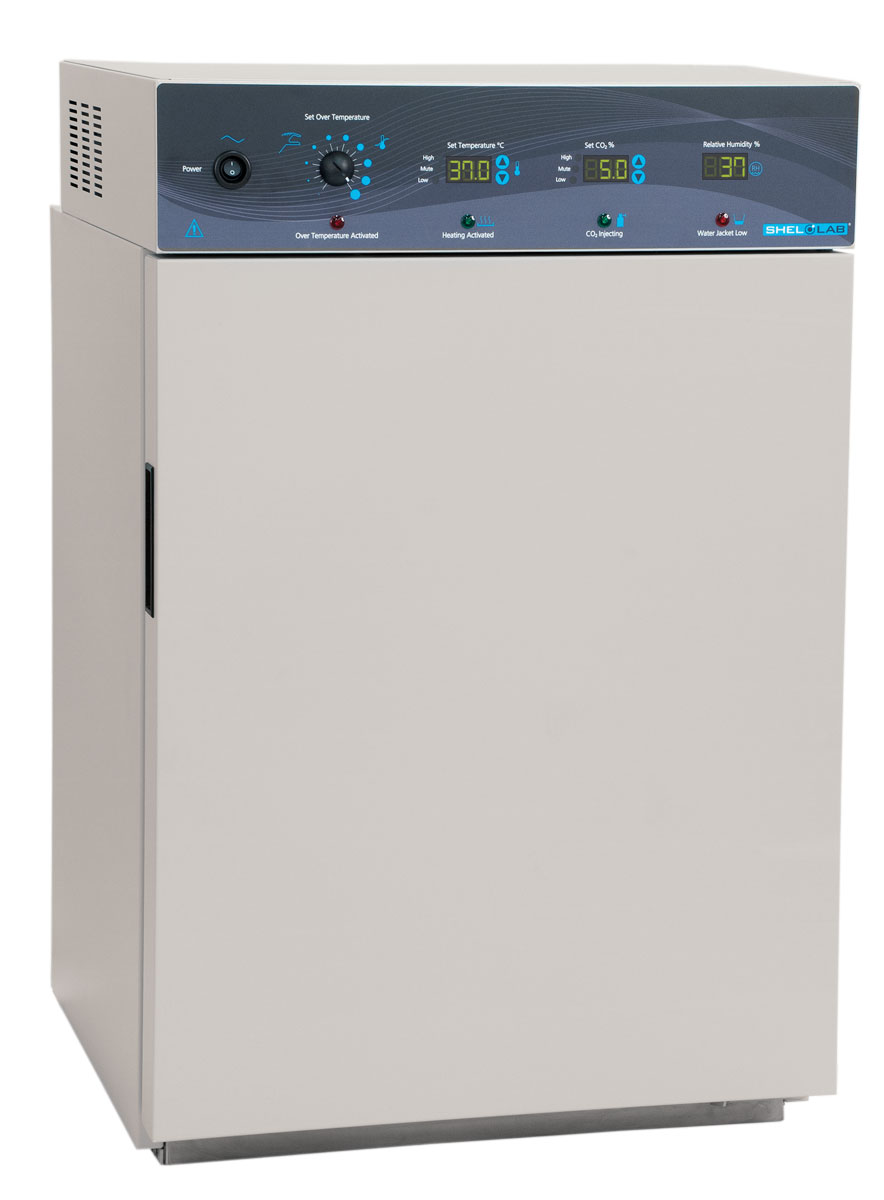

SCO5W CO2 INCUBATOR, WATER JACKET, 5 CU FT, IR, HEPA, 115V

Get a Quotation

Model SCO5W water jacketed CO2 incubator and is an ideal unit for cell culture applications. It provides a precisely controlled, accurate, pure environment throughout the culturing process. SHEL LAB CO2 incubators are designed to provide the uniform temperatures and highly stable CO2 environments that are necessary to prevent shocks to cells. Also available in a benchtop 1.5 cu.ft./42 L size (Model SCO2W), and SCO5W units can be stacked with the use of a stacking rack (PN 9751223)

Standard Design Features:

Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
Humidity levels, maintained through evaporation, of up to 95%
Temperature-compensated humidity sensor with digital display
Data logging capabilities
Designed to minimize contamination; includes:
Patented copper-caged HEPA filter
Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
Durable stainless steel chamber with coved corners for easy cleaning
Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
Copper shelving option
Autoclavable shelving system
Industry-best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Specs Brochures/Manuals

Model

SCO5W

Part ID

SCO5W

Exterior Dimensions (W × D × H)

26 × 25.5 × 40.3
(661 mm × 648 mm × 1024 mm)

Interior Dimensions (W × D × H)

19.3 × 19.8 × 23
(490 mm × 503 mm × 584 mm)

Volume

5.1 cu.ft. (144 L)

Shelf Dimensions (W × D)

19.1 × 19.1 (485 mm × 485 mm)

Unit Weight

254 lbs (115.2 kg)

Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +5C - 60C

Temperature Uniformity - Midrange

0.2 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 5.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SCO5W 110/120V Manual

SCO5W 220/240V Manual

SCO5W Brochure
