SMO14HP-2 High-Performance Oven, Forced Air, 13.8 Cubic Feet, 230V

Get a Quotation

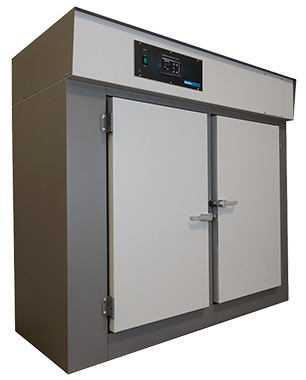

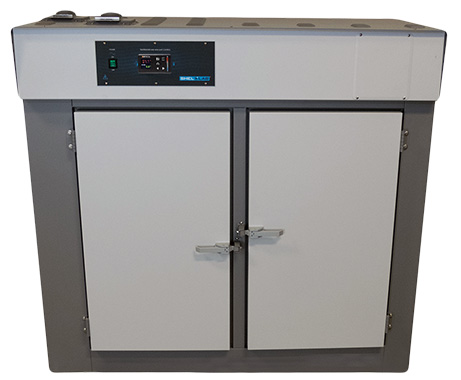

The SMO14HP-2 has rugged, welded construction with a double-walled, corrosion-resistant stainless-steel interior and a powder-coated exterior.

SHEL LAB High-Performance Ovens are engineered to meet the most critical temperature requirements. They are designed for continuous drying operations at temperatures up to 260°C. User-Adjustable integrated overtemperature protection prevents control failure from damaging contents and guards against burnout. The Watlow PM9 Plus controller provides a 4x10 step heat up and soak capability, 1°C control, and multiple levels of operator access and security. Process temperature and setpoint are displayed in dual three-digit LED readout for fast and accurate setting.

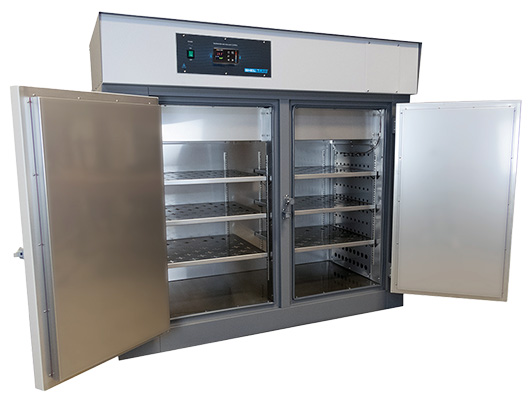

Horizontal airflow ensures uniform heating profiles and powerful heating elements provide fast heat-up and recovery to ensure rapid drying. Heated air is continuously circulated by twin turbo blowers. Blowers also circulate air around motor bearings to prolong motor life. Punched stainless steel shelves are height adjustable. Adjustable three-inch diameter air intake and exhaust ports can be opened for fast drying of high-moisture content samples.

The 3.5-inch-thick wrap-around fiberglass insulation on all sides minimizes heat loss and improves electrical efficiency. A high-temperature gasket door seal eliminates air leakage and ensures longer gasket life while being subjected to extreme operational temperatures. These units include long-lasting, low-watt density heating elements for responsive temperature control without risking overshoot. It also has adjustable heavy-duty hinges and camming door latches that are designed for lifetime service.

SHEL LAB ovens are available in a broad array of sizes, styles, and technology. Features:

Horizontal Air Flow
CE Approval
Dual Gasket Door Design
Watlow PM9 Plus Controller
Stainless Steel Interior
Built-in Overtemperature Protection
24 Month Limited Warranty

Download spec sheets for the SMO14HP-2!

Specs Brochures/Manuals

Model

SMO14HP-2

Part ID

SLFHP1423-H

Exterior Dimensions (W × D × H)

59.0 × 28.0 × 57.0
(1499 mm × 711 mm × 1448 mm)

Interior Dimensions (W × D × H)

44.0 × 20.8 × 30.0
(1117 mm × 528 mm × 762 mm)

Volume

15.9 cu.ft. (450 L)

Shelf Dimensions (W × D)

19.5 × 18.7 (496 mm × 175 mm)

Unit Weight

449 lbs (203.7 kg)

Interior Metal

300 Series Stainless Steel

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +15C - 260C

Temperature Uniformity - Midrange

2.5 °C

Temperature Stability - Midrange

0.3 °C

Controller Type

Watlow PM9 Plus

Display Resolution

1.0 °C

Power Voltage , Frequency and Current

220-240 VAC, 50/60 Hz, 26.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLFHP1423-H 220/240V Manual

SLFHP1423-H Brochure
