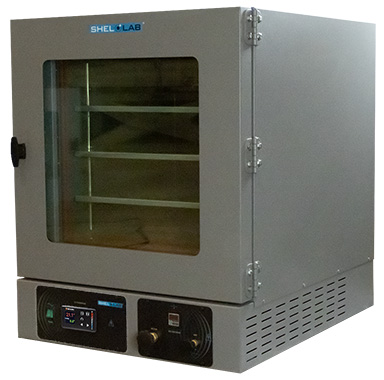

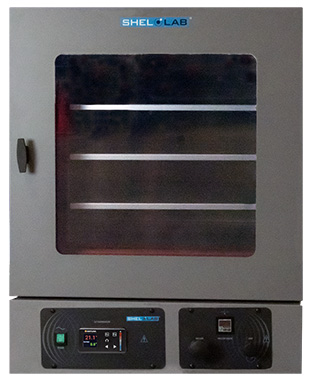

SVAC4 Vacuum Oven, 4.5 CUFT, 115V

Get a Quotation

Our revamped SHEL LAB SVAC vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials.

Vacuum ovens prevent residue accumulation on products and use lower temperatures than typical convection ovens. Your products are processed with minimal impact and maximum throughput.

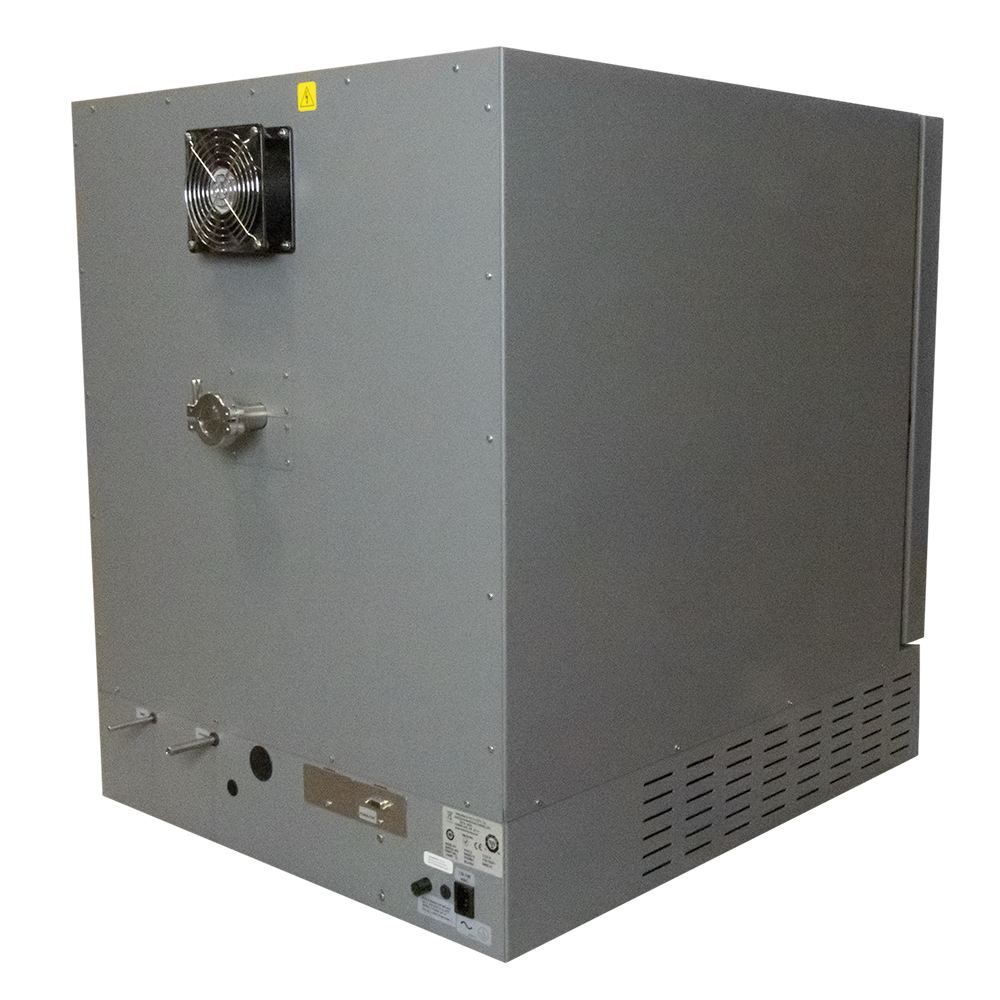

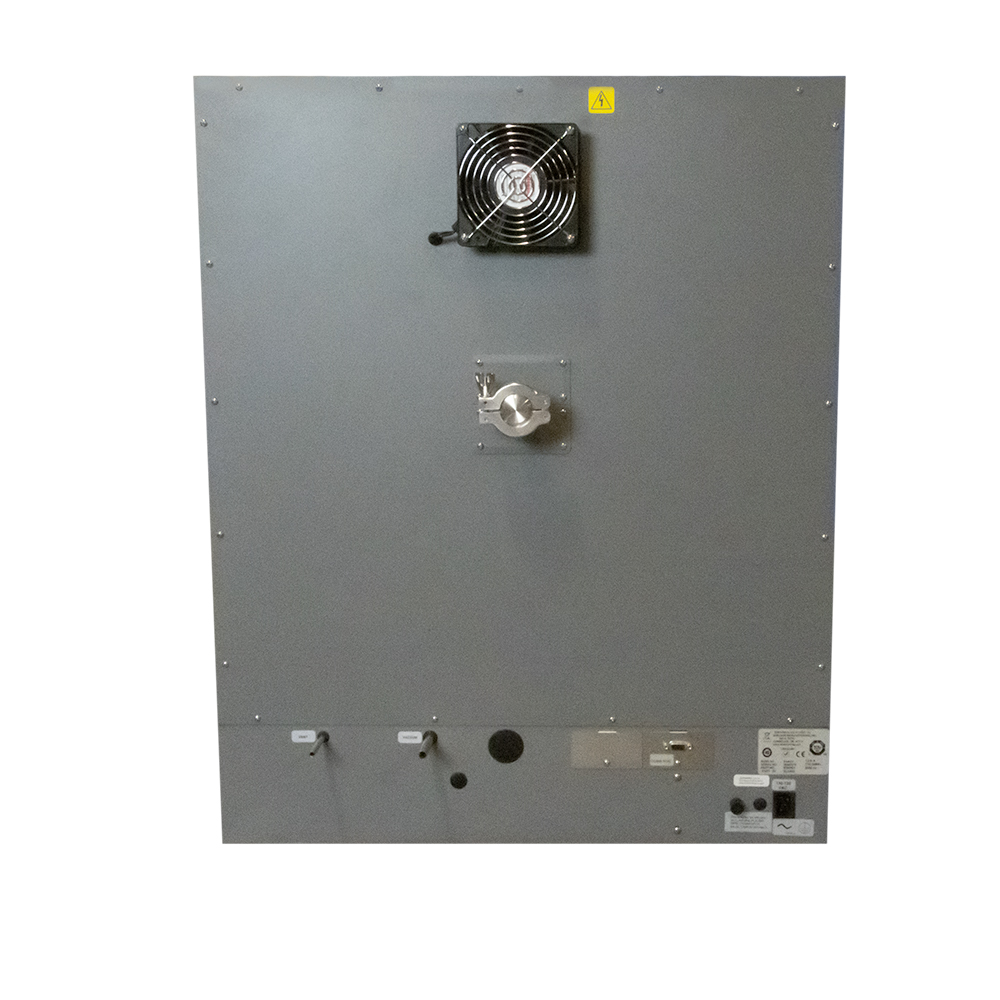

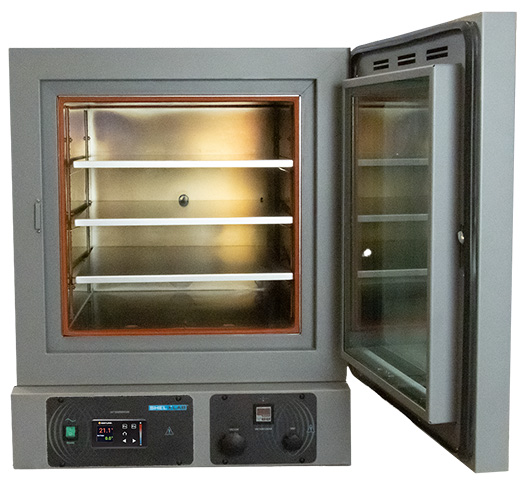

SHEL LAB vacuum ovens have stainless steel interiors and provide exceptional durability and stability. Available in 4 sizes, SVAC Vacuum Ovens support a diverse array of applications. To achieve required vacuum levels, users can choose from a 3/8-inch orifice or a KF-25 fitting to withstand heavy use and minimize draw-down time.

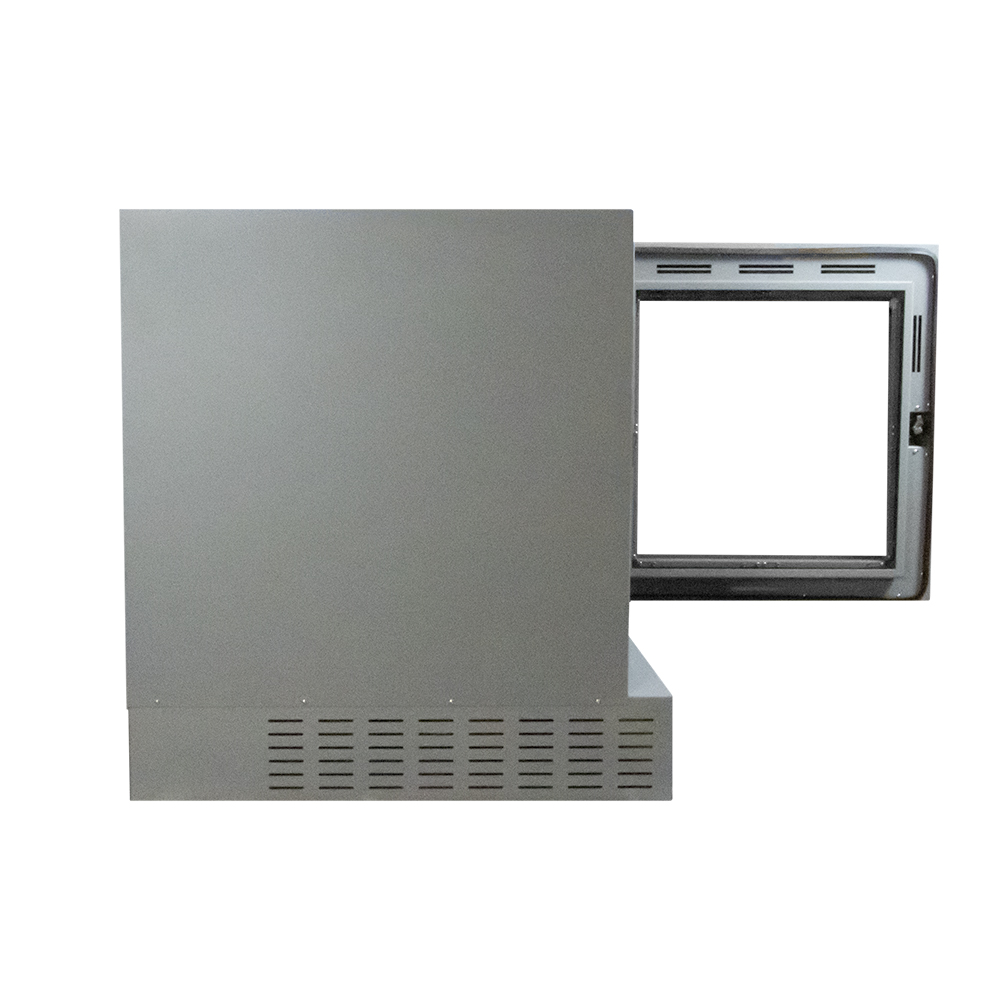

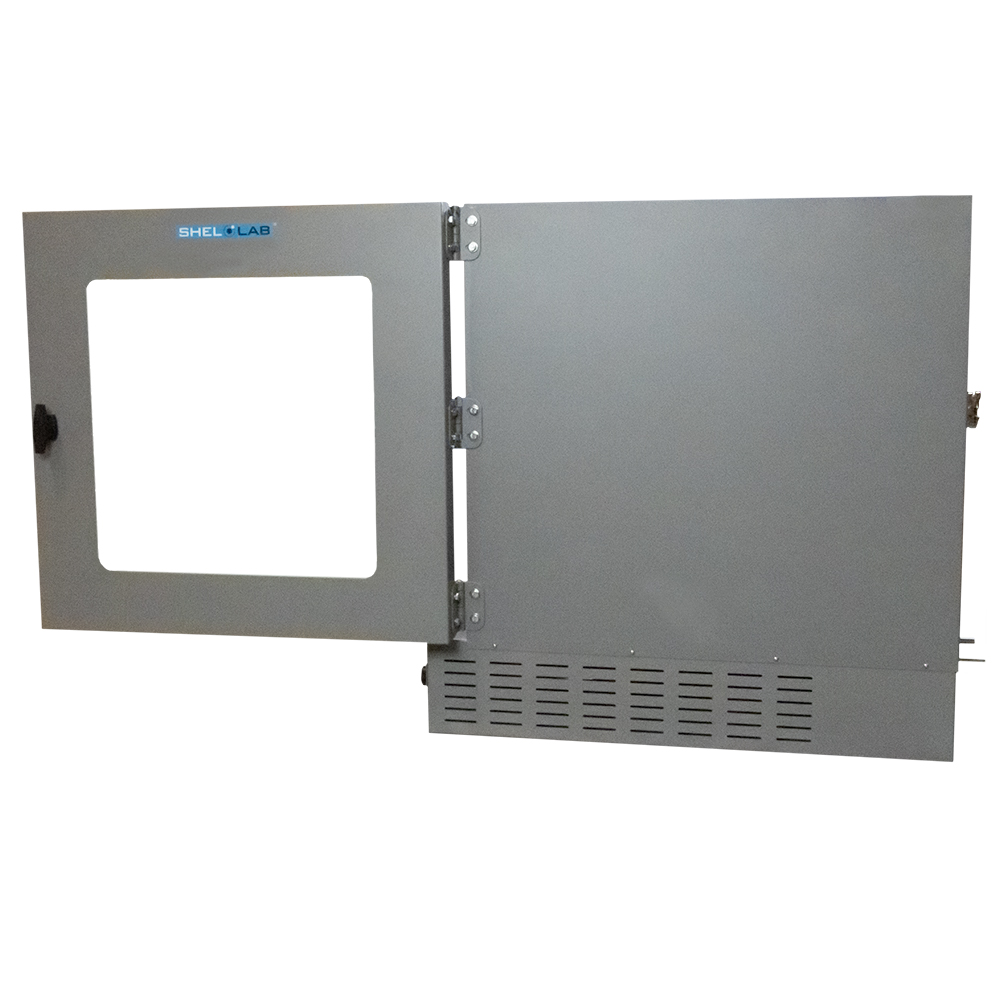

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.

SHEL LAB Vacuum Ovens are equipped with silicone gaskets.

Features include:

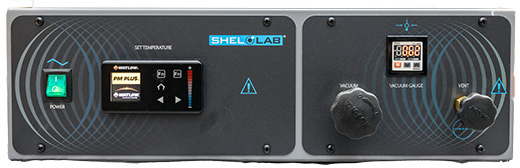

Watlow PM9 Plus Controller
Generous Usable Shelf Area
Achieve Impressive Vacuum Levels
Sizes Range from 0.6 – 4.5 Cubic Feet
Built-in Overtemperature Protection
24 Month Limited Warranty
Extended Warranties Available* (Ask Your SHEL LAB Sales Rep)

Need More Room? Check out our SVAC9-2

Download spec sheets for the SVAC4 and SVAC4-2!

Please note that this vacuum oven does not include a pump or related accessories. Contact your SHEL LAB distributor for assistance with choosing the ideal pump and accessories for any application.

*US Domestic Only

Specs Brochures/Manuals

Model

SVAC4

Part ID

SLV423

Exterior Dimensions (W × D × H)

27 × 35.2 × 32.8
(686 mm × 895 mm × 833 mm)

Interior Dimensions (W × D × H)

18 × 24 × 18
(457 mm × 610 mm × 457 mm)

Volume

4.5 cu.ft. (127.4 L)

Shelf Dimensions (W × D)

17.2 × 22.9 (437 mm × 582 mm)

Unit Weight

317 lbs (144 kg)

Interior Metal

300 Stainless Steel

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +10C - 220C

Temperature Uniformity - Midrange

6% of SP °C

Temperature Stability - Midrange

+/- 0.25 at 150 °C

Controller Type

Watlow PM9 Plus

Display Resolution

0.1 °C

Power Voltage , Frequency

110-120 VAC, 50/60 Hz,

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLV423 110/120V Manual

SLV423 220/240V Manual

SLV423 Brochure
