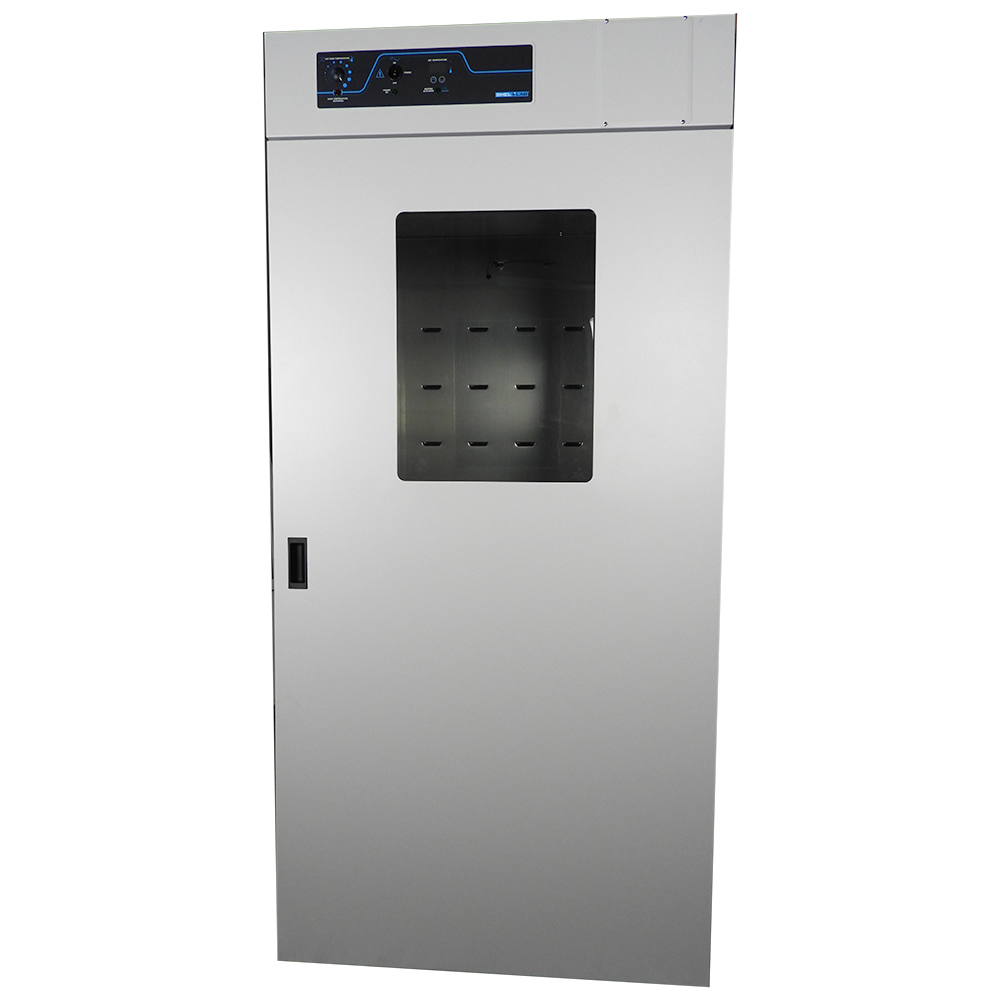

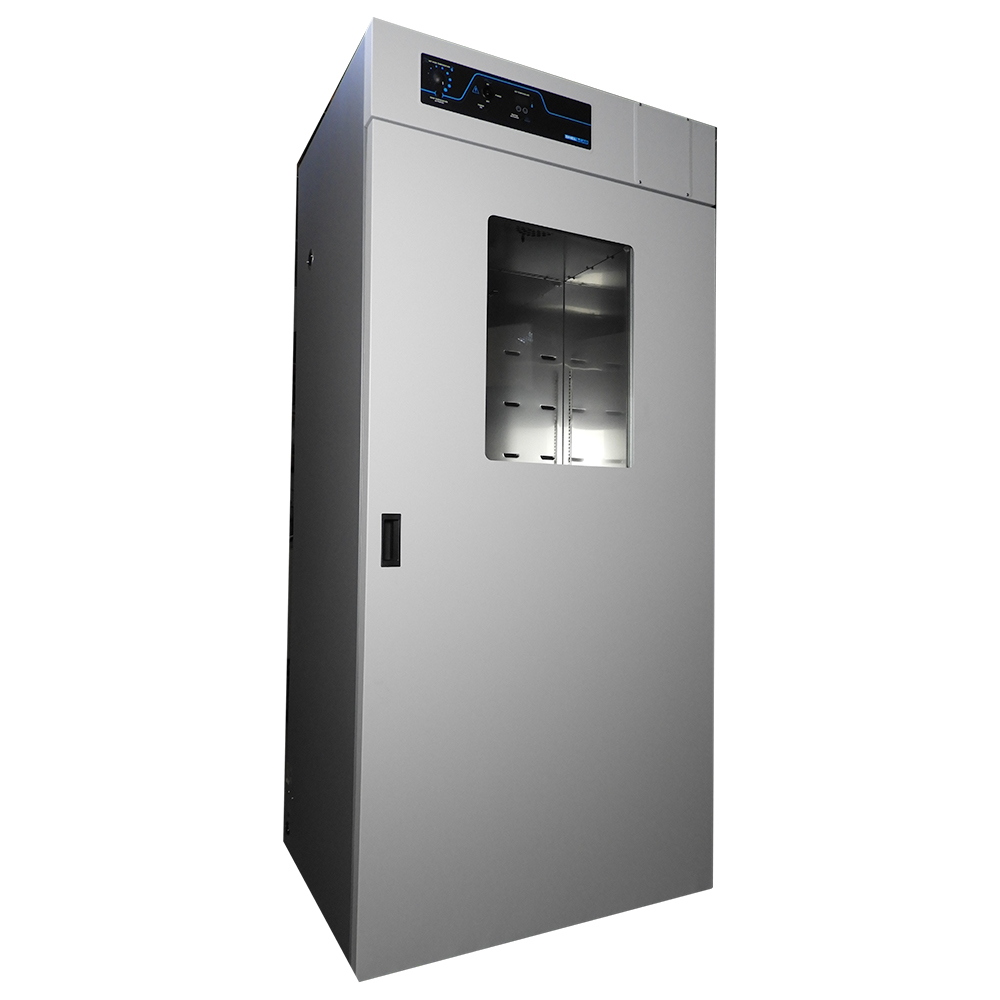

SMI39 38.6 cu.ft. 1093 L | View Door, Roll in Floor | 110-120 Volt

Get a Quotation

Shel Lab’s Large Capacity Incubators provide extra-large capacities while minimizing the amount of floor space needed. The temperature in this large space is kept uniform by integrating a highly responsive microprocessor with an appropriately sized heating element. An independent secondary temperature controller offers the added security of over temperature protection.

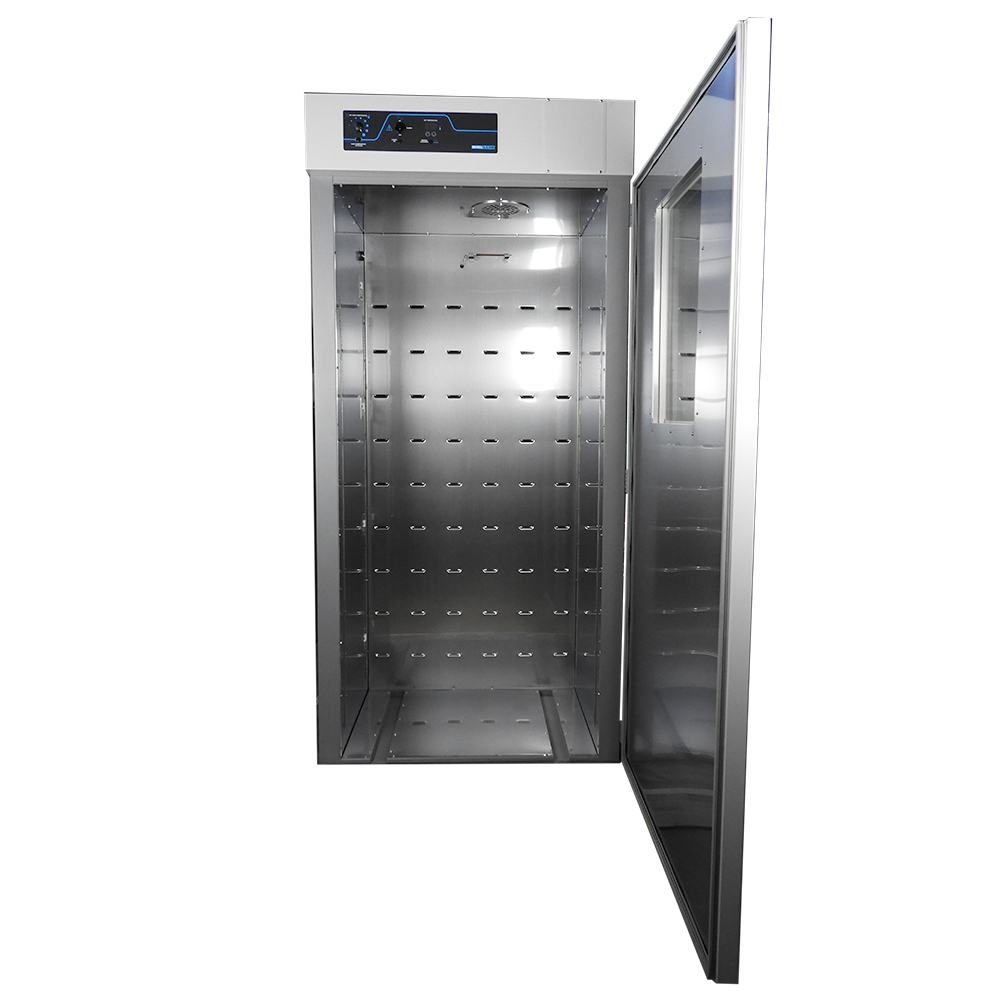

Our unique forced air circulation system creates a one-pass circulation pattern that provides both exceptional temperature uniformity and rapid heat recovery. The chamber floors are ruggedly reinforced to support roller apparatus or shakers. The SMI39 is supplied with six sturdy shelves that will not sag or bend under heavy loads.

Features include:

Roller Bottle Apparatus Accommodation
Tempered Glass Viewing Window
Prewired Panel for Chart Recorder
Four Interior Electrical Outlets
24 Month Limited Warranty
Glass Window Blocks up to 56% of UV Light
NEW – the SMI39 is now supplied with a standard stainless-steel interior!

Ask About Our Extended Warranties*!

*US Domestic Only

Specs Brochures/Manuals

Model

SMI39

Part ID

SMI39

Exterior Dimensions (W × D × H)

41.5 × 34.3 × 90.3
(1054 mm × 872 mm × 2293 mm)

Interior Dimensions (W × D × H)

35.6 × 26 × 76
(904 mm × 660 mm × 1930 mm)

Volume

38.6 cu.ft. (1093 L)

Shelf Dimensions (W × D)

24 × 34.4 (610 mm × 874 mm)

Unit Weight

497 lbs (225 kg)

Interior Metal

430 Stainless Steel

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +8C - 70C

Temperature Uniformity - Midrange

0.8 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 14.5 Amps

Max HVAC Load

3971 BTUs/hr

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE
