SVAC9-2 VAC OVEN, 9.3 CUFT, 230V

Get a Quotation

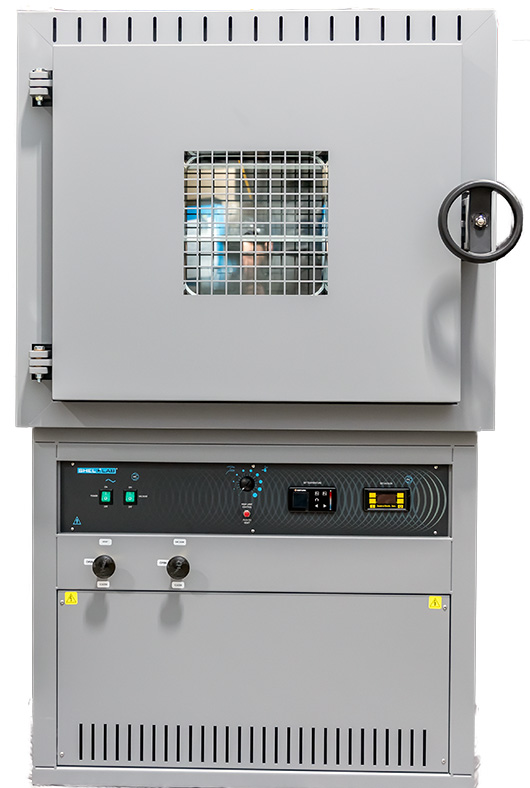

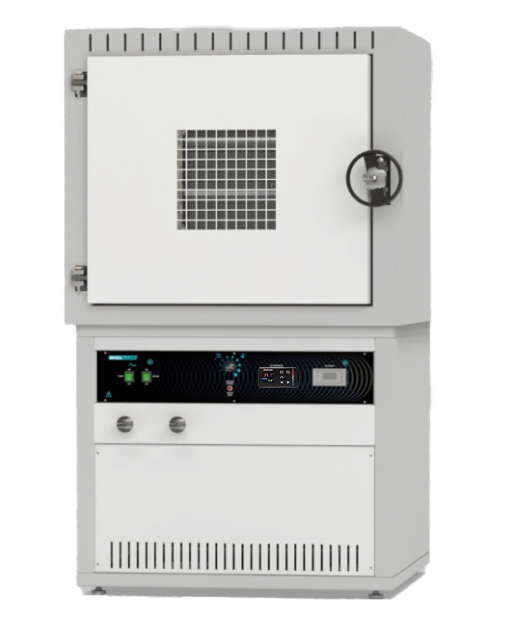

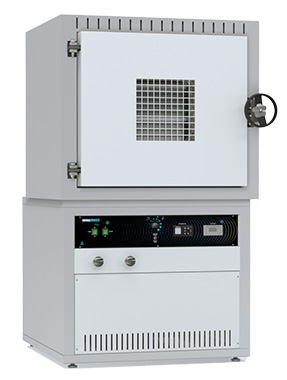

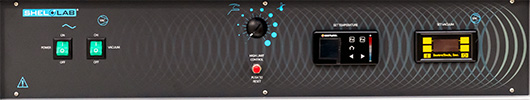

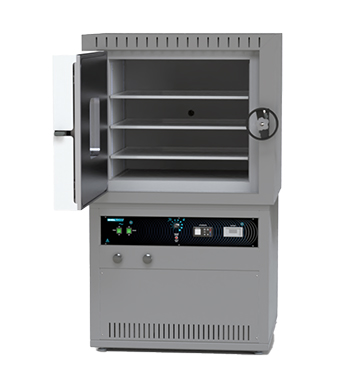

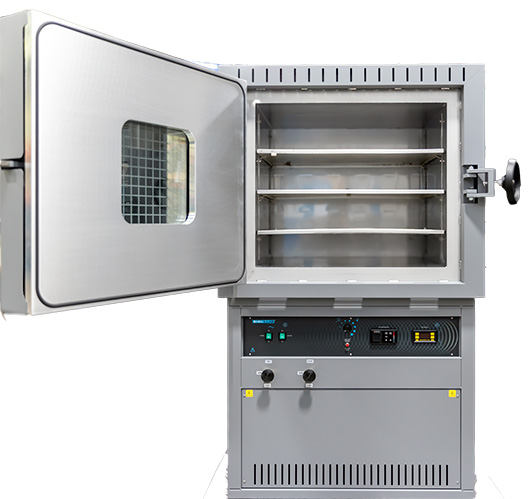

The SHEL LAB Model SVAC9-2 is one of the largest vacuum ovens on the market, with 9.3 cubic feet of capacity. This unit also features a fully programmable Watlow PM9 Plus controller and a cool touch surface. A digital vacuum gauge shows chamber vacuum level in measurements of Torr and m/Torr. The display range is 760 Torr down to 0 mTorr (Maximum permitted end vacuum is 10 mTorr. Leak rate is 30 mTorr in 30 min). A secondary independent high limit controller provides overtemperature safety protection.

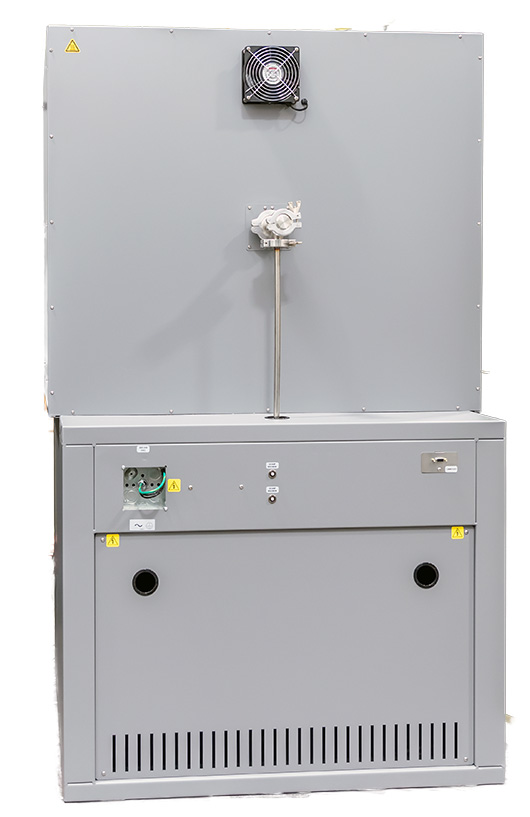

This unit includes true vacuum valves and has cross-flow ventilation within the oven chamber to enhance total performance. The vacuum oven is secured to a ruggedly constructed mobile stand to create a vacuum pump at the base. Although the oven is not supplied with a vacuum pump, all vacuum plumbing and KF25 connections are provided.

The SHEL LAB SVAC9-2 vacuum oven is equipped with a Viton gasket, which provides an excellent combination of high-temperature performance and chemical resistance. When paired with this oven’s deep-draw capacity and large chamber volume, the SVAC9-2 serves as one of the most robust vacuum work stations available on the market.

Features include:

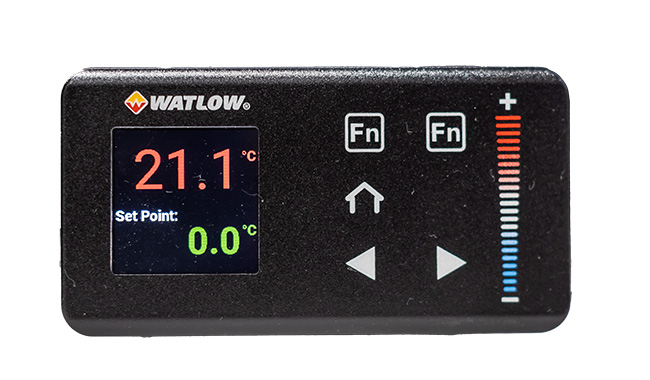

Watlow PM9 Plus Controller Capable Of 40 Step Ramp And Soak Profiles, Or 4 Files With 10 Steps Per File
Stainless Steel Interior
Stainless Steel Exterior Option Available (Ideal For Cleanroom Applications)
KF25 Fitting Included
Built in Vacuum Pump Mount
24 Month Limited Warranty

Ask us about our Extended Warranties*!

Older versions of manuals are located in our document library.

*US Domestic Only

Specs Brochures/Manuals

Model

SVAC9-2

Part ID

SVAC923-EA

Exterior Dimensions (W × D × H)

38.1 × 46.8 × 63.9
(965 mm × 1189 mm × 1624 mm)

Interior Dimensions (W × D × H)

28 × 24 × 24
(711 mm × 610 mm × 610 mm)

Volume

9.3 cu.ft. (264 L)

Shelf Dimensions (W × D)

27.5 × 23.5 (699 mm × 597 mm)

Unit Weight

492 lbs (223 kg)

Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +15C - 220C

Temperature Uniformity - Midrange

6% of SP °C

Temperature Stability - Midrange

0.2 °C

Controller Type

Watlow PM9 Plus

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

220-240 VAC, 50/60 Hz, 20.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE
