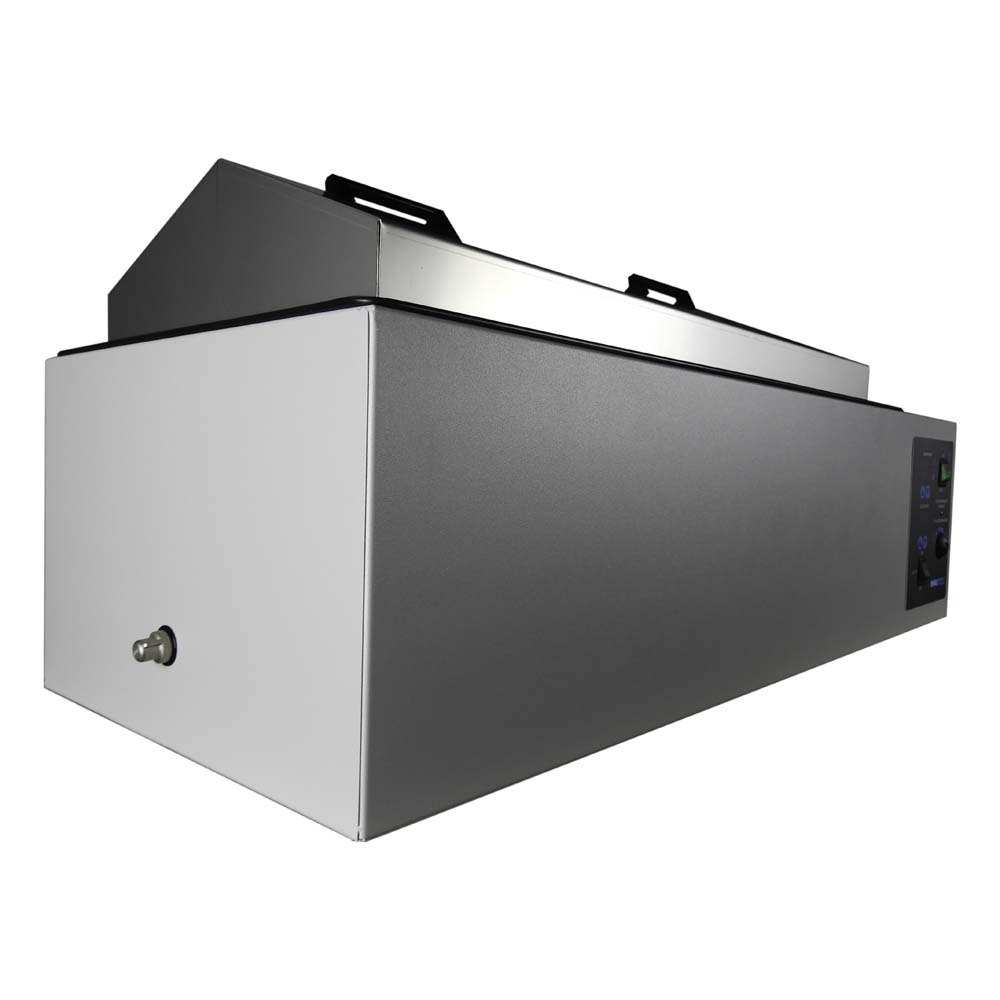

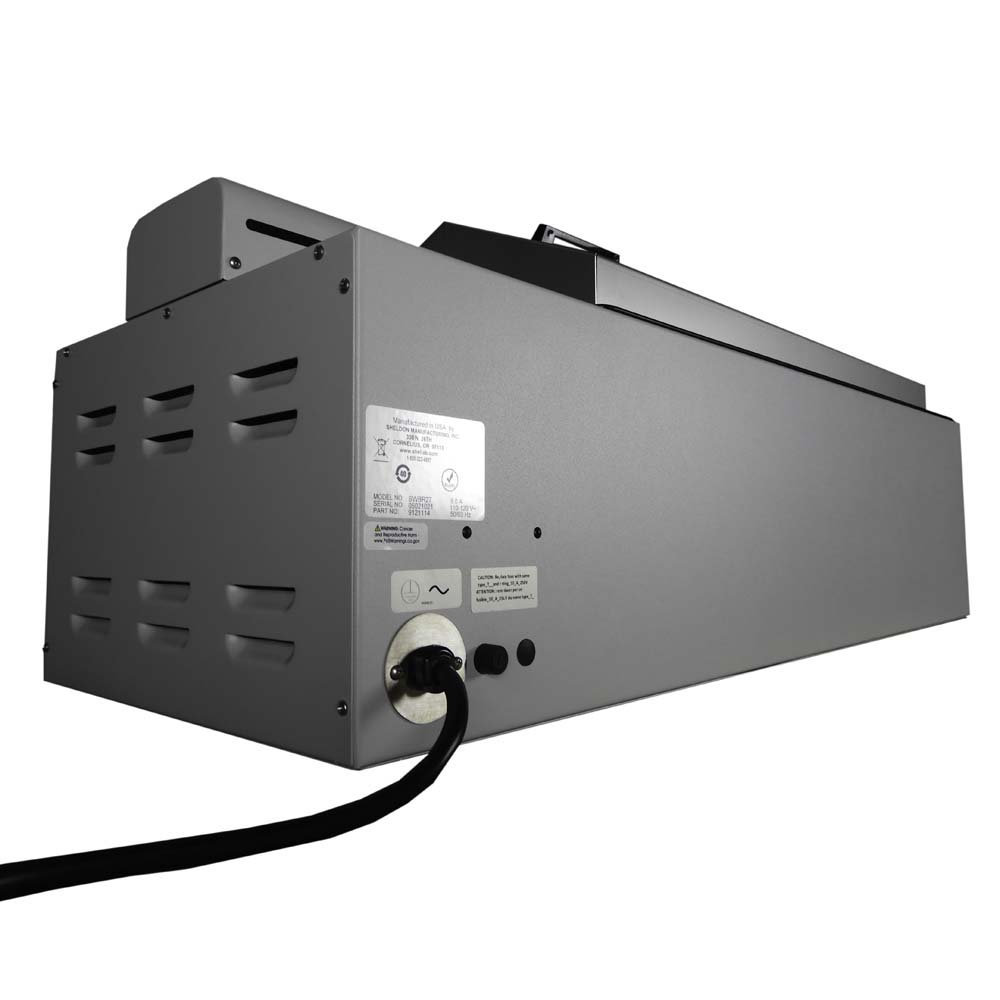

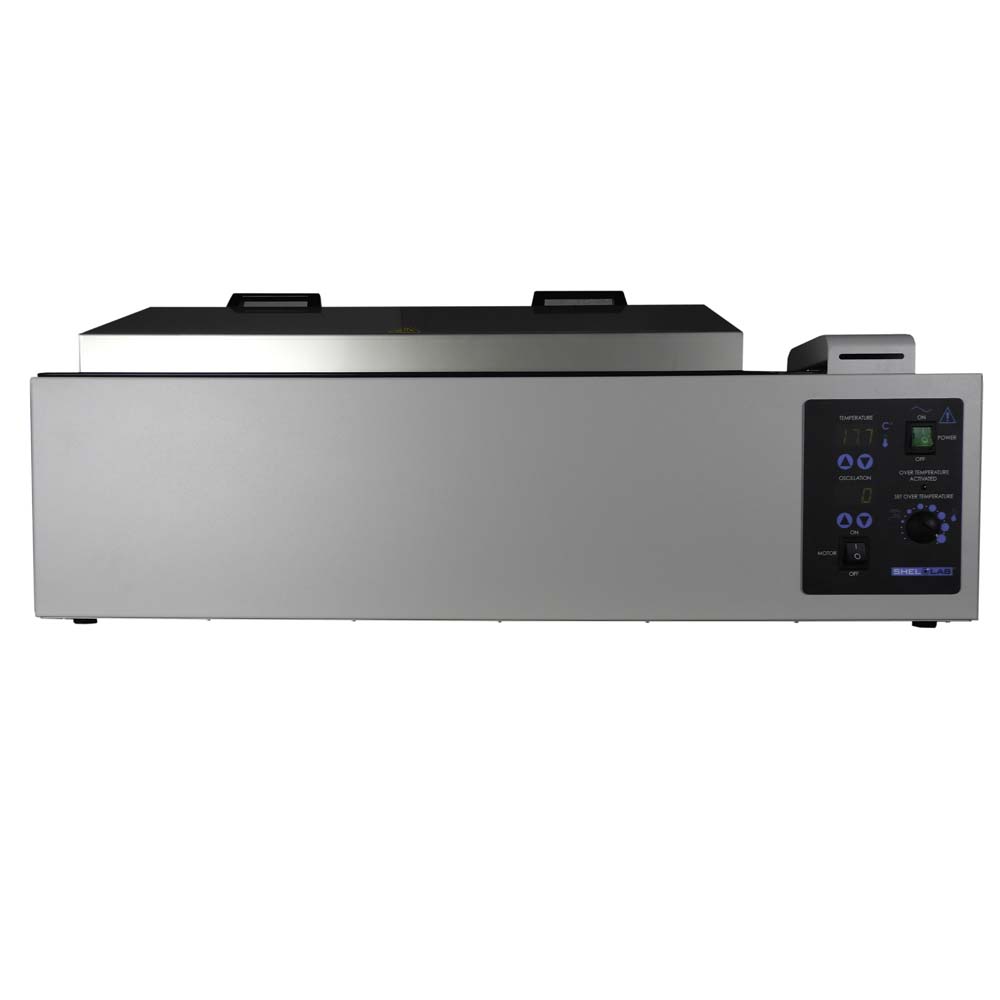

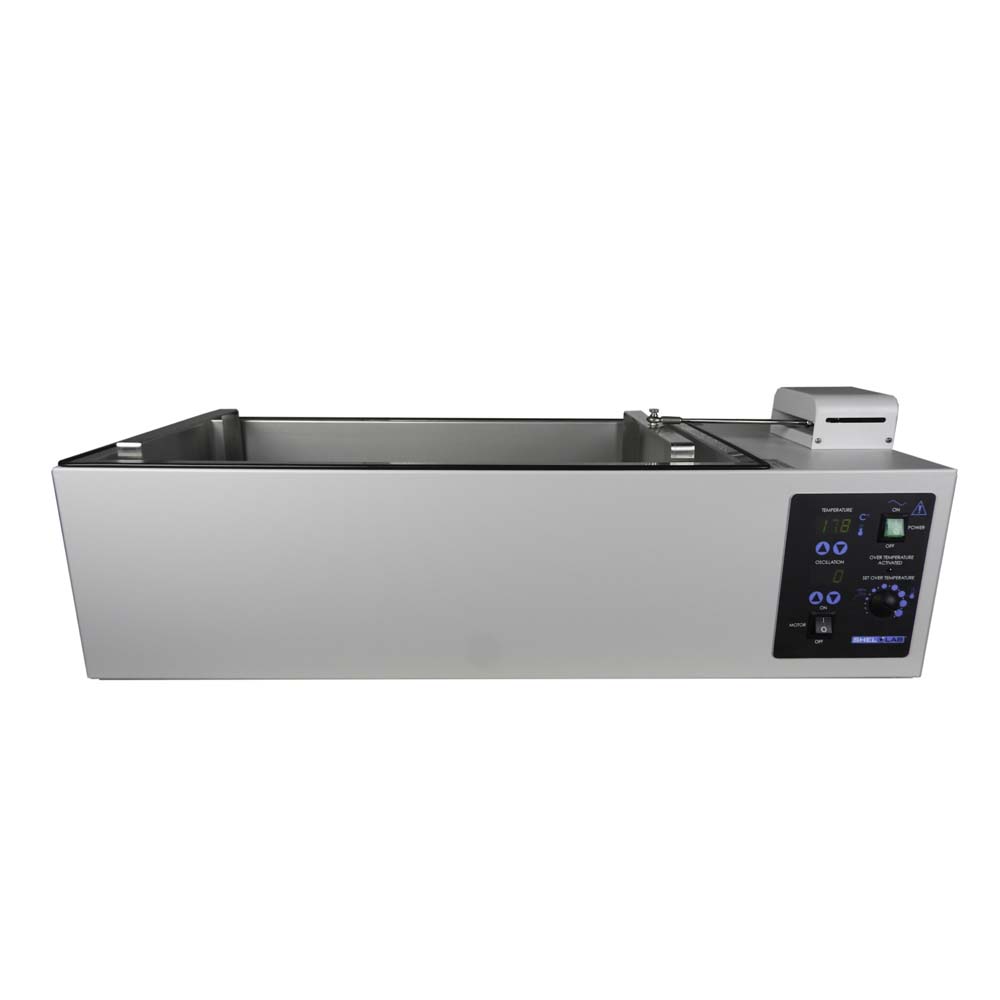

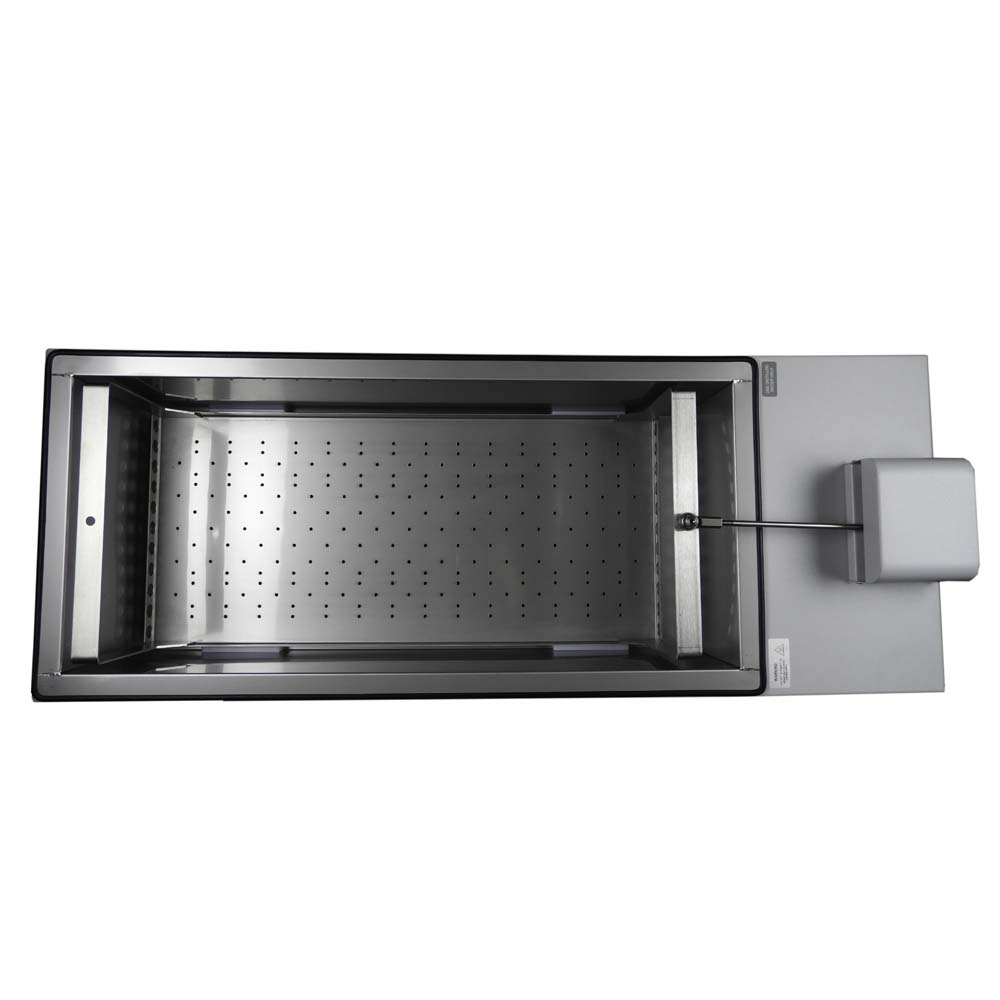

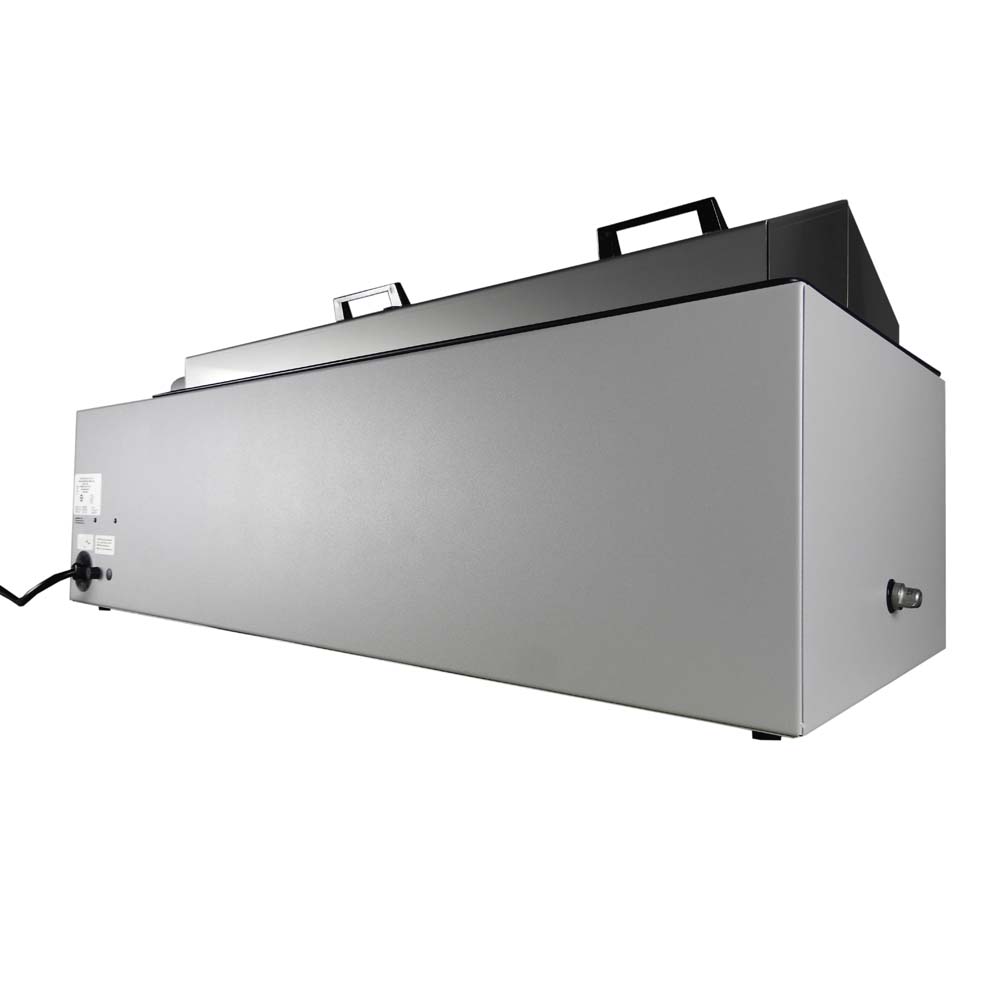

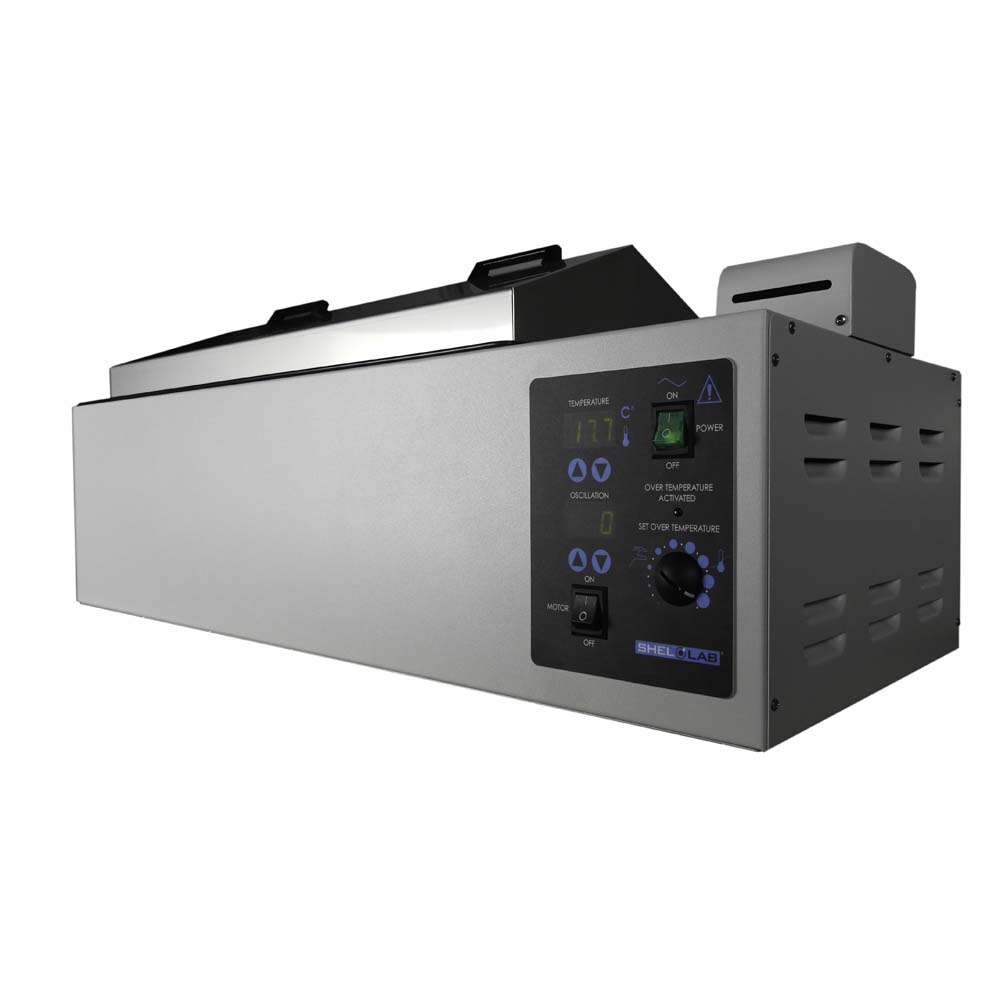

SWBR27 SHAKING WATER BATH, 27L, 115V

Get a Quotation

SHEL LAB Reciprocating Water Baths deliver precise temperature control and a smooth reciprocal shaking motion. Temperature and oscillation controls feature an easy to read P.I.D. microprocessor temperature controller and an independent safety thermostat.

The bath may be used with or without oscillation. Shaking speed is variable from 20 to 200 oscillations per minute, and the stroke length can be adjusted to three separate settings: 0.5, 1.0, or 1.5 inches to minimize the chance of accidental spillage. Also, the unique basket support system is designed to eliminate tank wear, yet still provide full support and free action for a heavily loaded basket.

A durable finish on the housing prevents corrosion and chipping. In addition to having stainless steel tank, the bath platform tray is designed for optimum temperature uniformity. Maximum temperature is achieved using the stainless steel gable cover, which is designed to prevent condensate from dripping onto samples and assures uniform temperature conditions.

These units feature:

Microprocessor Control
Independent Oscillation and Temperature_Controls
Recessed Heating Element to Prevent Burnout
Adjustable Stroke Length
Thermometer Clip
24 Month Limited Warranty *excludes tank

Specs Brochures/Manuals

Model

SWBR27

Part ID

SWBR27

Exterior Dimensions (W × D × H)

36.9 × 14.6 × 15.2
(937 mm × 371 mm × 386 mm)

Interior Dimensions (W × D × H)

27 × 12 × 7.2
(686 mm × 305 mm × 183 mm)

Volume

0.95 cu.ft. (27 L)

Shelf Dimensions (W × D)

24.7 × 11.1 (NA mm × NA mm)

Unit Weight

51 lbs (23.1 kg)

Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +5C - 80C

Temperature Uniformity - Midrange

0.2 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 9.0 Amps
