SCO10A CO2 INC, AJ, HEPA, 10 CUFT, STACKED, 115V

Get a Quotation

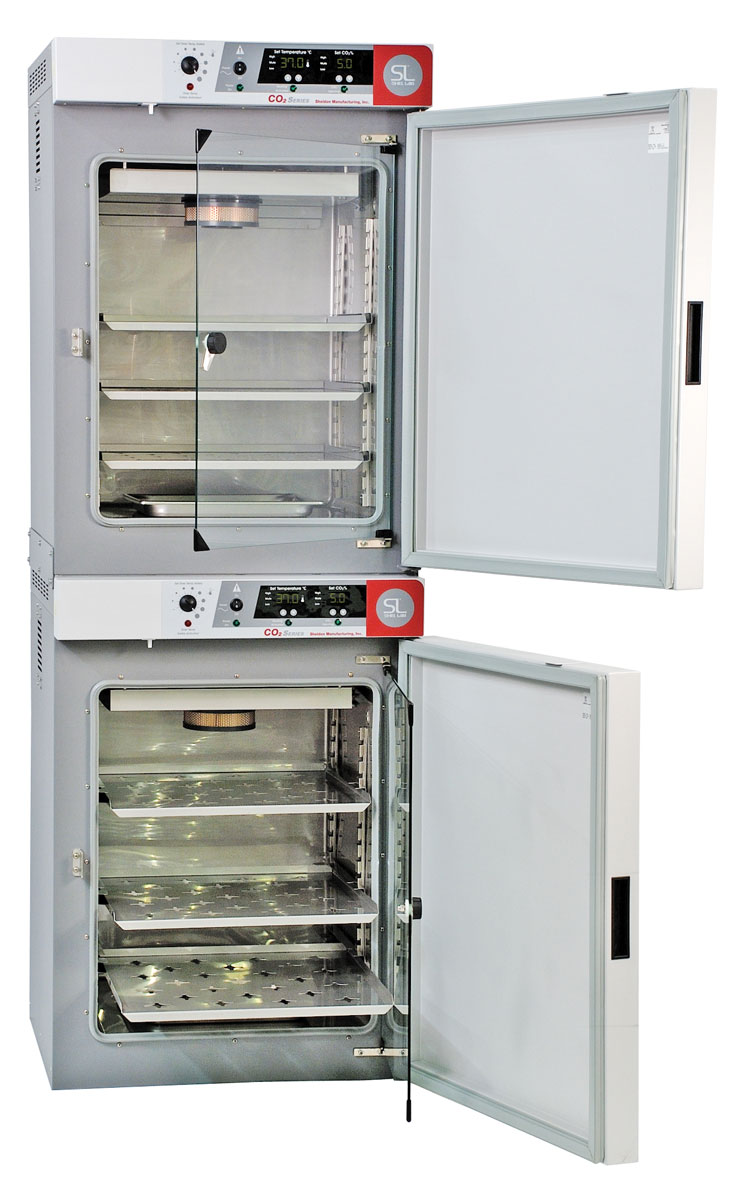

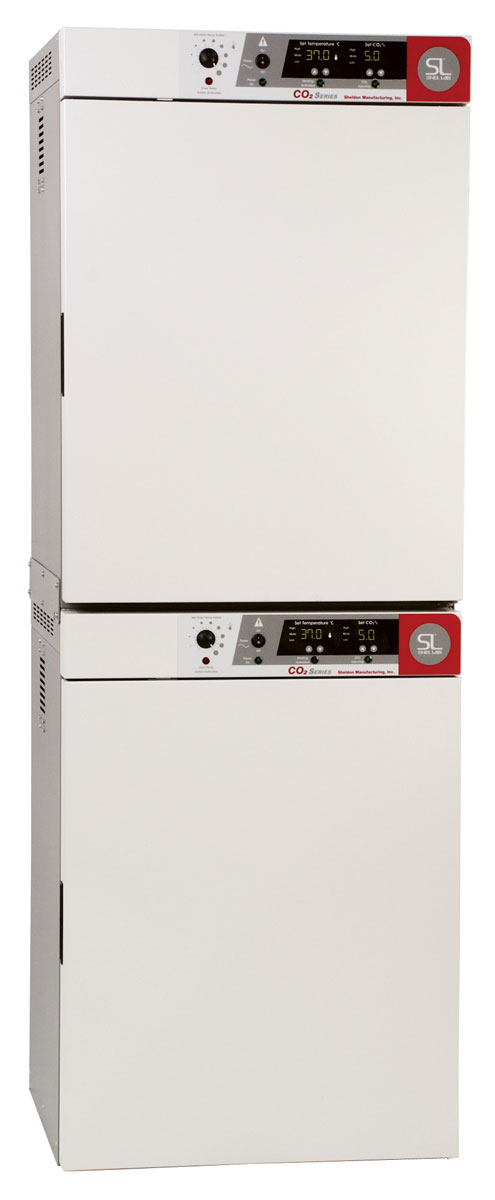

Model SCO10A is a stacked version of our SCO5A incubator and is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Standard Design Features:

Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
Humidity levels maintained through evaporation of up to 95%
Data logging capabilities

Designed to minimize contamination; includes:

Patented copper-caged HEPA filter
Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
Durable stainless steel chamber for easy cleaning
Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
Copper shelving option
Autoclavable shelving system
Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Specs Brochures/Manuals

Model

SCO10A

Part ID

SCO10A

Exterior Dimensions (W × D × H)

27.5 × 28.5 × 75.6
(699 mm × 724 mm × 1921 mm)

Interior Dimensions (W × D × H)

20.5 × 19.8 × 21.5
(521 mm × 503 mm × 546 mm)

Volume

5.0 cu.ft. (142 L)

Shelf Dimensions (W × D)

19.1 × 17.8 (485 mm × 251 mm)

Unit Weight

400 lbs (182 kg)

Interior Metal

301 SST

Exterior Metal

Painted Cold Roll Steel

Operating Temperature Range

Amb +5C - 60C

Temperature Uniformity - Midrange

0.25 °C

Temperature Stability - Midrange

0.1 °C

Controller Type

Digital

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 6.0 Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SCO10A 110/120V Manual

SCO10A 220/240V Manual

SCO10A Brochure
