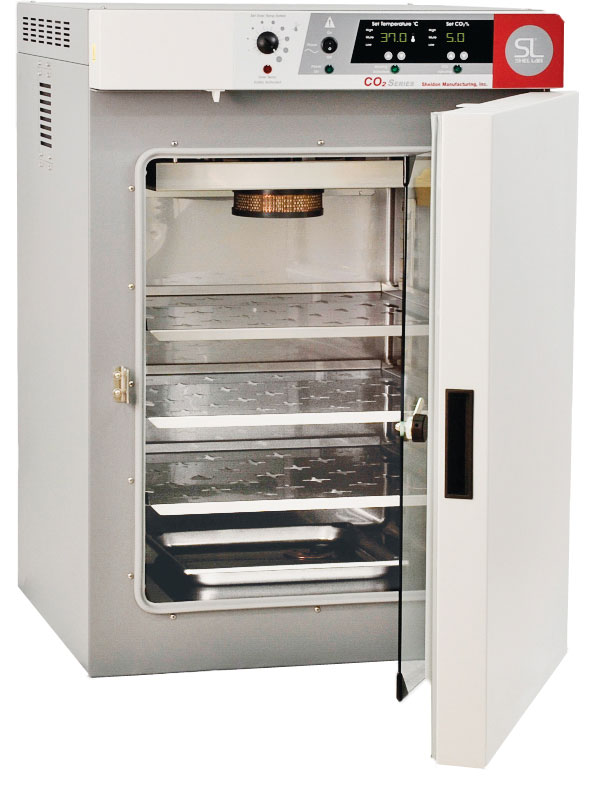

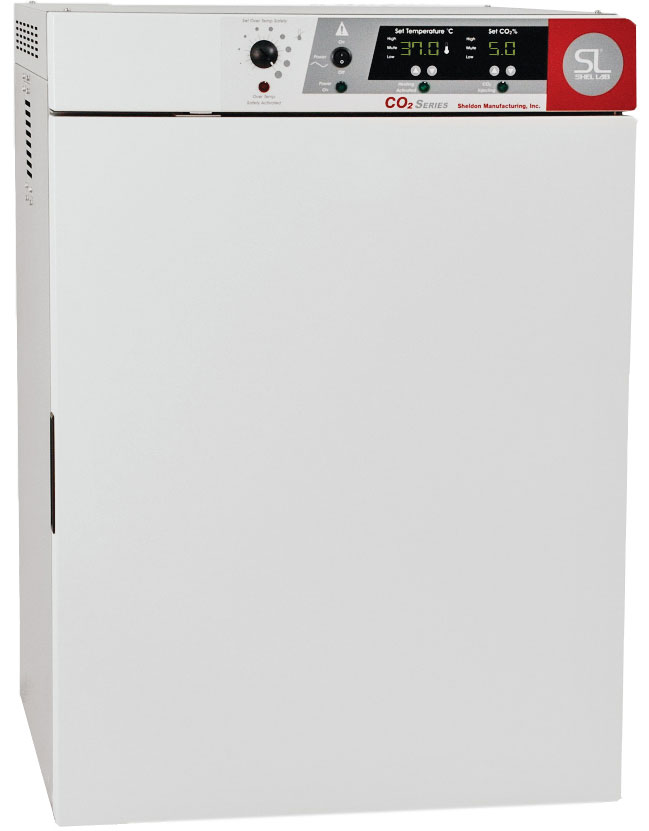

SCO5A CO2 INC, AJ, HEPA, 5 CUFT, 115V

Get a Quotation
Model SCO5A is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Standard Design Features:

  • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
  • Humidity levels maintained through evaporation of up to 95%
  • Data logging capabilities
  • Designed to minimize contamination; includes:
  • Patented copper-caged HEPA filter
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Durable stainless steel chamber for easy cleaning
  • Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Model

SCO5A

Part ID

SCO5A


Exterior Dimensions (W × D × H)

27.5 × 28.5 × 37.8
(699 mm × 724 mm × 960 mm)

Interior Dimensions (W × D × H)

20.5 × 19.8 × 21.5
(521 mm × 503 mm × 546 mm)

Volume

5.0 cu.ft. (142 L)

Shelf Dimensions (W × D)

19.1 × 17.8 (485 mm × 251 mm)

Unit Weight

200 lbs (91 kg)


Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +5C - 60C

Temperature Uniformity - Midrange

0.25 °C

Temperature Stability - Midrange

0.1 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 6.0 Amps


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SCO5A 110/120V Manual

SCO5A 220/240V Manual

SCO5A Brochure
